9 Symptoms of a Failing Excavator Hydraulic Pump
An excavator may still move when its main pump starts to fail. The first changes often appear under load, after the oil gets hot, or when the operator uses two functions at once.
Bad excavator hydraulic pump symptoms can also look like valve, oil, filter, hose, or control problems. Check the full system before you order a pump.
Quick Symptom and Diagnosis Table
The table below links common operator complaints to the first useful checks. One symptom alone does not prove pump failure.
| What the Operator Notices | What It May Mean | Check First |
|---|---|---|
| Boom, arm, bucket, and travel all slow down | Low pump output or a shared supply problem | Oil level, filter, suction line, engine speed |
| The machine loses digging or lifting force | Low pressure, low flow, relief valve fault, or pump wear | Pressure under load and relief settings |
| Hydraulics work cold but fade when hot | Internal leakage grows as the oil thins | Oil temperature, hot pressure, flow, case drain |
| The pump whines or rattles | Cavitation, air in the oil, poor inlet flow, or bearing wear | Oil level, inlet hose, strainer, filter, foaming |
| Hydraulic oil runs too hot | Power turns into heat through leakage or restriction | Cooler, fan, oil grade, pressure loss |
| Movements surge or jerk | Air, unstable control pressure, sticking valves, or pump damage | Oil condition, pilot pressure, control signals |
| Oil leaks around the pump | Loose fitting, damaged hose, failed seal, or excess case pressure | Clean the area and trace the source |
| Metal appears in the filter | Internal wear in a pump, motor, valve, or cylinder | Cut open the filter and inspect the oil |
| Pressure, flow, or case drain is outside spec | The pump or its controls may be worn or misadjusted | Test at the specified oil temperature |

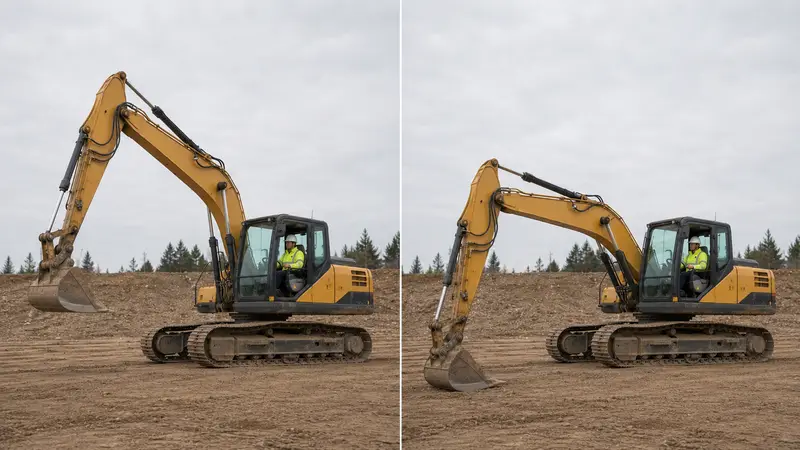

1. Several Hydraulic Functions Become Slow
A worn pump may reduce flow to the whole machine. The boom, arm, bucket, swing, and travel may all feel slower than normal.
Compare the cycle time with the service manual when possible. Run the test at the correct engine speed and hydraulic oil temperature.
Slow movement does not always mean a bad pump. Low oil, a blocked inlet, a dirty filter, low engine speed, or a control problem can reduce flow in the same way.
2. Digging and Lifting Power Drop
Flow controls speed, while pressure creates force. A weak excavator may stall the bucket in hard soil or struggle to lift a normal load.
Low force can come from pump wear, but it can also come from a relief valve that opens too soon. Internal leakage in a cylinder or control valve can cause the same complaint.
Test pressure while the machine is under a controlled load. Do not turn relief valves to raise pressure before you find the cause.
3. The Machine Works Cold but Gets Weak When Hot
Cold hydraulic oil is thicker. It can hide internal leakage inside a worn pump for a short time.
As the oil heats up, it becomes thinner and leaks through worn clearances more easily. The machine may then slow down, lose power, or need more engine speed to finish the same job.
This pattern is one of the stronger bad excavator hydraulic pump symptoms. It still needs hot-oil pressure, flow, and case-drain tests before you condemn the pump.
4. The Pump Makes a New Whine, Grind, Knock, or Rattle
A healthy pump does not stay silent, but its normal sound should remain steady. A new or louder sound needs prompt inspection.
High-Pitched Whine
A sharp whine often points to restricted inlet flow or air entering the suction side. Low oil, a blocked strainer, a crushed hose, or the wrong oil can cause this sound.
Do not assume the pump is already ruined. Fixing an inlet problem early may prevent cavitation damage.
Grinding or Rough Noise
Grinding may point to damaged bearings or internal contact. Stop the machine if the noise grows fast or metal appears in the oil.
Knocking or Rattling
Air bubbles can collapse inside the pump and create a rough knocking sound. Loose couplings and damaged drive parts can also rattle near the pump.
Use a mechanic’s stethoscope only when the service method allows it. Keep hands, tools, and clothing away from moving parts and hot surfaces.
5. Hydraulic Oil Overheats
Internal leakage wastes hydraulic power and turns it into heat. A worn pump can make the oil temperature climb during normal work.
The pump is not the only heat source. A blocked cooler, weak fan, wrong oil, dragging valve, or high relief pressure can also overheat the system.
Check the cooler and airflow before you replace the pump. Then measure the temperature drop and test the system under the same work cycle that causes the problem.
6. Hydraulic Movements Become Jerky or Uneven
A pump should deliver steady flow as demand changes. Surging, hesitation, or pulsing can appear when the inlet draws air or the pump controls become unstable.
Foamy oil gives the system a soft and uneven feel. A pilot pressure fault, sticking control valve, damaged sensor, or poor electrical signal can create similar movement.
Check the oil for foam and discoloration. Then inspect the inlet side and read fault codes before you open the pump.
7. Oil Leaks Around the Pump
Fresh oil near the pump needs attention, but it does not prove internal pump failure. A loose fitting, cracked hose, damaged O-ring, or worn shaft seal may cause the leak.
Clean the area and run the machine only as the service procedure allows. Use cardboard or a leak detection tool to find the source.
Never use your hand to search for a high-pressure leak. Hydraulic injection injuries need emergency medical care.
8. Metal Particles Appear in the Filter or Oil
Metal in the hydraulic filter is a serious warning. It may come from the pump, a travel motor, a swing motor, a valve, or a cylinder.
Cut the filter open with a proper filter cutter. Look at the amount, color, and type of debris, and compare it with earlier service records.
Large chips or a fast rise in debris call for immediate action. Running the machine can spread hard particles through valves, motors, and new parts.
9. Pressure, Flow, or Case-Drain Readings Are Abnormal
Instrument tests give stronger proof than sound or operator feel. Use rated gauges, hoses, and flow tools that match the machine’s pressure and flow.
Low pressure may point to pump wear, but a relief or control fault can also limit pressure. Low flow can explain slow cycle times even when a no-load pressure check looks normal.
High case-drain flow often shows that too much oil leaks through internal pump clearances. Compare the hot reading with the service limit for the exact pump and test condition.
Diagnostic Flow: From Symptom to Decision
Follow the same order each time. Basic checks cost less and may find the fault before you connect test equipment.
| Start | → | Basic Checks | → | Instrument Tests | → | Action |
|---|---|---|---|---|---|---|
| Several functions are weak, slow, hot, or noisy | → | Check oil, filters, inlet hose, cooler, engine speed, codes, and control signals | → | Test hot pressure, flow, cycle time, and case drain | → | Fix the support system, repair the pump, or replace the pump |
Do not skip from the first symptom to a new pump. A blocked inlet or bad control signal can damage the replacement and leave the original complaint unchanged.
Problems That Can Look Like Pump Failure
Many faults affect several functions at once. Use the table to plan the next test instead of guessing.
| Look-Alike Fault | Common Clue | Useful Check |
|---|---|---|
| Low oil level | Noise changes with machine angle | Inspect the level and find the leak |
| Wrong or damaged oil | Poor cold response, heat, foam, or odor | Confirm oil grade and take a sample |
| Blocked suction strainer | Whine and poor flow at higher demand | Inspect inlet restriction |
| Collapsed inlet hose | Problem grows at high engine speed | Check the hose under load |
| Dirty return or pilot filter | Slow response or control issues | Check restriction indicators and filters |
| Relief valve fault | Low force with normal unloaded movement | Test pressure and relief behavior |
| Pump regulator fault | Power control feels wrong or unstable | Test control pressure and command signals |
| Cylinder leakage | One function drifts or feels weak | Isolate and test the cylinder |
| Control valve leakage | One circuit loses force or heats up | Test the affected section |
| Engine power loss | Hydraulics slow as engine speed falls | Check actual engine speed under load |
Checks to Make Before You Condemn the Pump
Start with the machine history. Ask when the problem began, which functions fail, and whether the fault changes with temperature.
Then complete the basic inspection. Use the same order on each inspection:
- Park on firm, level ground and lower the attachment.
- Check hydraulic oil level, grade, color, odor, foam, and water.
- Inspect the tank breather, suction hose, clamps, strainer, and filters.
- Look for leaks, crushed hoses, loose fittings, and blocked cooler fins.
- Confirm engine speed under load.
- Read machine fault codes and live control data when available.
- Warm the oil to the test temperature in the service manual.
- Measure cycle time, pressure, flow, and case drain.
- Compare every result with the correct machine specification.
Hydraulic testing can release hot oil at dangerous pressure. A trained technician should perform tests that require opening a line or installing a flow meter.
Field Example: Strong Cold, Weak Hot
An operator reports slow boom lift after 40 minutes of digging. The excavator feels normal at startup, and no major external leak appears.
The technician checks the oil level, inlet hose, filters, cooler, and engine speed first. Those items pass inspection, but the hot flow test shows a clear loss and the case-drain reading rises above the service limit.
In this case, the group of bad excavator hydraulic pump symptoms supports internal pump wear. The test results also reduce the chance of replacing a good pump because of a valve or cooling fault.
When Should You Stop Operating the Excavator?
Stop the machine if the pump makes grinding sounds, the oil contains metal, or a high-pressure leak appears. Also stop if the hydraulic temperature warning stays on.
Continuing work can spread debris and overheat seals, valves, and motors. A small repair can become a full-system cleaning job.
A mild loss of speed still needs a prompt check. Schedule testing before the machine loses enough power to create a lifting or travel hazard.
Repair or Replace the Pump?
The right choice depends on damage, parts support, test results, and downtime. A clean pump with limited wear may be a repair candidate.
| Condition | Repair May Make Sense | Replacement May Make Sense |
|---|---|---|
| Damage level | Wear stays within repair limits | Housing, shaft, rotating group, or controls have major damage |
| Debris | Little debris and no system spread | Metal has moved through the system |
| Parts support | Correct internal parts and test data are available | Key parts or test support are not available |
| Downtime | A qualified shop can rebuild and test it soon | A matched replacement gets the machine back faster |
| Cost | Repair, testing, and warranty offer good value | Repair cost approaches the price of a replacement |
For budget planning, review the excavator hydraulic pump replacement cost guide. It covers the pump, labor, flushing, related damage, and downtime.
If the original pump can be rebuilt, compare the required items with available hydraulic pump parts. Internal pump repair needs a clean work area, precise measurements, correct settings, and a proper test bench.
Match the Replacement Pump Before You Order
Do not order by excavator model alone. One model may use more than one pump during its production run.
Collect these details before you compare pumps. Record each item as shown on the machine:
- Machine make and full model
- Machine serial number or PIN
- Pump manufacturer and model code
- Complete pump and OEM part numbers
- Clear nameplate photo
- Front, rear, side, and port photos
- Shaft and mounting flange details
- Port size, position, and thread type
- Regulator, solenoid, sensor, and connector details
Use those details when you compare excavator hydraulic pumps. A part number match is strongest, but photos and machine data can catch port, regulator, and connector differences.
Protect the New or Rebuilt Pump
Find the cause of the first failure before installation. Low inlet flow, dirty oil, heat, or poor startup can damage the next pump.
Clean the reservoir and inspect the cooler, hoses, valves, and motors when debris is present. Replace contaminated filters and follow the machine maker’s flushing method.
Prime the pump as the service manual directs. Confirm the oil level, oil grade, rotation, case-drain route, and control connections before startup.
Start at low load and watch for noise, leaks, heat, and unstable movement. Recheck filters and oil after the first service period when the repair plan calls for it.
The Bottom Line
Bad excavator hydraulic pump symptoms do not prove pump failure on their own. Check the oil supply, cooling system, controls, pressure, flow, and case drain before you replace the pump.
If testing confirms internal pump wear, collect the pump number and machine details before you buy. Compare available units in the excavator hydraulic pump category. If you cannot confirm the correct match, send Amoparts a parts inquiry with the machine model, serial number, pump part number, nameplate photo, and clear installation photos.
