How To Choose An Engine Rebuild Kit ?
MAIN TYPES OF ENGINE REBUILD KITS
There are three types of engine rebuild kits—re-ring, inframe, and out-of-frame.When it comes to rebuilding an engine, it’s important to understand the differences between in-frame, out-of-frame, and re-ring rebuild kits. Many customers often use the term “rebuild kit” without specifying which type they need. As a result, we typically assume they require a standard in-frame rebuild kit, as it is the most commonly requested option. However, it’s crucial to note that there are multiple levels of rebuild kits available, depending on the condition of the engine’s parts and the original equipment manufacturer (OEM) specifications.An engine rebuild is a large and expensive job, and choosing the right kit can seem a daunting task.
Additionally, it’s worth mentioning that the term “overhaul kit” is often used interchangeably with “rebuild kit,” but it can also specifically refer to an out-of-frame kit. To prevent any confusion related to the term “overhaul,” we exclusively use the term “rebuild.” Knowing the difference between the various engine rebuild kits will help you shop with confidence, knowing you’re getting the right parts for the job at hand.
RE-RING ENGINE REBUILD KITS
Re-ring kits are the smallest rebuild kits available. This is one of the most time-efficient methods of rebuilding an engine, but it assumes your pistons are reusable. Before choosing to order a remounting ring kit, evaluate the condition of other engine components.
RE-RING KIT CONTENTS
Reinstallation ring kits typically contain cylinder liners (if used in the application), piston rings, connecting rod bearings, main bearings, thrust washers (if used in the application), cylinder head gasket kit, and oil pan gasket kit. One big thing to note is that the re-ring rebuild kit does not include pistons. Sometimes, you may see kits labeled “pistonless” or “pistonless” – these are re-ring kits. The term “re-ringing” comes from the fact that even if pistons in an engine are reused, the rings should be replaced when they are pulled out of the cylinder. Therefore, you need to reseal the old piston.
CHOOSING A RE-RING KIT
Re-ring kits are for those who need to update their engine with a rebuild but still have pistons that are in good condition. All the more wear-resistant parts such as rings, bearings and washers are replaced. If the piston is still good, it doesn’t necessarily need to be replaced. This saves a lot of money, both in parts and labor. Since this type of rebuild can be performed while keeping the engine in the chassis, labor expenses are saved.
INFRAME ENGINE REBUILD KITS
The In-Frame Engine Rebuild Kit is a comprehensive kit designed to facilitate the engine rebuilding process. In-frame kits are more time-consuming than re-ring kits while offering a wider range of components than out-of-frame repair options. However, it is crucial to ensure that you purchase a kit specifically designed for your engine model.
INFRAME KIT CONTENTS
An in-frame rebuild kit will always include the piston as well as regular piston parts such as rings and pins. Unless the engine is a stock or sleeveless engine, the frame kit will always include cylinder liners and liner seals as well. Like remounting ring kits, in-frame kits also typically have connecting rod bearings, main bearings, thrust washers (if used in this engine), and oil pan gaskets. There is also an upper engine gasket pack, which consists of a head gasket pack and some additional gaskets that are installed in the upper engine.
CHOOSING AN INFRAME KIT
There’s a reason why inner frame kits are the most popular choice. It contains all the essentials for a complete engine rebuild, including pistons and piston pins. This is a good option if you think your pistons are not in optimal condition and you don’t want to risk rebuilding your engine again in a few months. As the name suggests, the in-frame kit can be installed while the engine remains in the frame. This will save time and labor since you won’t have to worry about removing the engine from the vehicle.
OUT-OF-FRAME ENGINE REBUILD KITS
Our Out-of-Frame Engine Rebuild Kits are the ultimate solution for a comprehensive engine overhaul. These kits offer the most extensive range of components compared to other kit levels, ensuring that every part that may need replacement is taken care of. While it does require more labor time to install, the benefits are well worth it, as it helps prevent uneven wear by replacing multiple parts simultaneously.
OUT-OF-FRAME KIT CONTENTS
It will have the same basic components that an inframe kit has (cylinder liners, liner seals, pistons, pins, ring sets, rod bearings, main bearings, thrust washers (if applicable)), with some upgrades. The head gasket set will be upgraded to an overhaul gasket set, or both an upper engine and a lower engine gasket set. The specifics of what is in an overhaul gasket set varies from engine to engine, but it will generally have all the gaskets and seals you’ll need when pulling the engine from the chassis. These will also include front and rear crankshaft seals in all out-of-frame kits, except for the kits that fit on Detroit Diesel engines.
CHOOSING AN OUT-OF-FRAME KIT
The over-the-frame kit is everything you need to rebuild your engine and more. It’s for when you really need an overhaul and don’t care how long it takes. In typical non-creative fashion in the diesel world, an off-frame kit is required when pulling the engine out of the frame. If you have some free time and some extra money, it’s worth it to go outside the frame because you know you’re replacing everything you might need
At AMOParts, you can fund 100s of engine overhaul kits including components like cylinder liners, pistons, pins, ring sets, rod bearings, main bearings, and thrust washers, intake valves, exhaust valves, valve guides, valve seats, engine gasket kit, etc.
Popular Engine Rebuild Kits

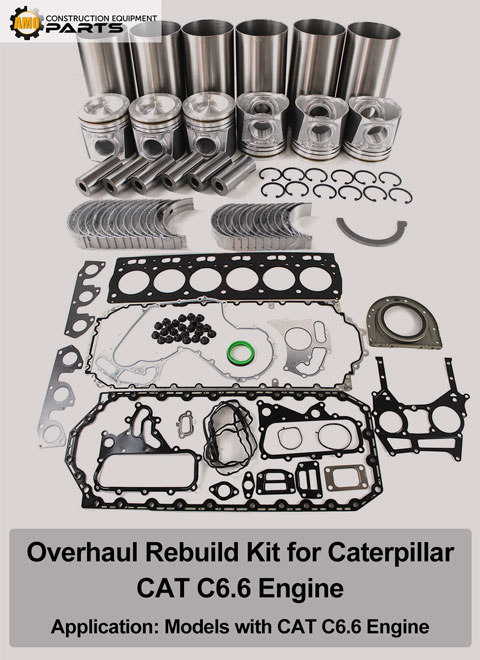

1. Overhaul Rebuild Kit for Caterpillar CAT C6.6 Engine
Overhaul Rebuild Kit for Caterpillar CAT C6.6 Engine
Application: Models with CAT C6.6 Engine
Content:
1 Set of Overhaul Gasket Kit
6 Cylinder Liners, semi-finished
6 Pistons, STD,6 Piston Pins
12 Snap Rings,6 Rod Bushings
Set Rings For 6 Pistons, STD
1 Set of Main Bearings,1 Set of Rod Bearings
1 Set of Thrust Washer,12 Intake Valves
12 Exhaust Valves,24 Valve Guides
12 Intake Valves Seats,12 Exhaust Valves Seats
*The cylinder liners in this kit are semi-finished.
They require additional machining.

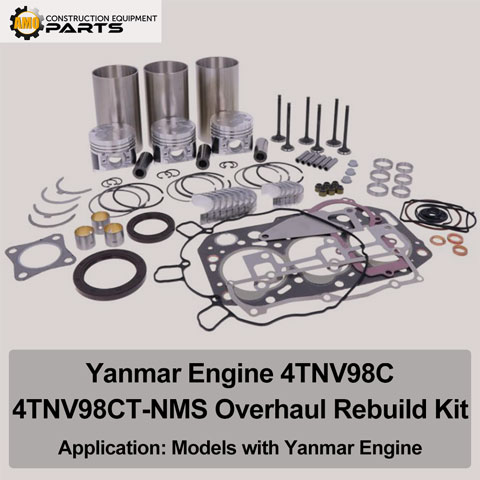

2. Yanmar Engine 4TNV98C 4TNV98CT-NMS Overhaul Rebuild Kit
Application: Models with Yanmar Engine 4TNV98C 4TNV98CT-NMS
Contents:
1 Set of Overhaul Gasket Kit,4 Cylinder Liners
4 Pistons STD,4 Piston Pins
8 Snap Rings,4 Rod Bushings
1 Set of piston rings,1 Set of Main Bearings
1 Set of Rod Bearings,1 Set of Thrust Bearings
4 Intake Valves,4 Exhaust Valves
8 Valve Guides,4 Intake Valves Seats
4 Exhaust Valves Seats
*The cylinder liners in this kit are semi-finished.
They require additional machining

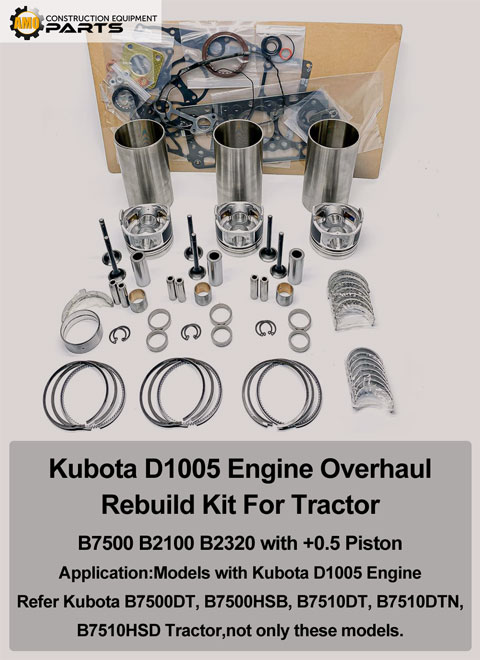

3. Kubota D1005 Engine Overhaul Rebuild Kit For Tractor
Kubota D1005 Engine Overhaul Rebuild Kit For Tractor B7500 B2100 B2320 with +0.5 Piston
Engine number: D1005
This kit comes with oversized 0.50mm pistons and rings.
Application:Kubota B2100DT B2100HST-D B2100HST-DB B7500DT B7500HSB B7510DT B7510DTN B7510HSD B2320DT B2320DTN B2320DWO B2320HSD
Contents:
Piston: 1 set .Cylinder liner: 1 set
Piston pin: 1 set,Piston ring: 1 set
Piston snap: 1 set,Piston pin bush: 1 set
Con rod bearing: 1 set,Main bearing: 1 set
Full gasket kit: 1 set,Valve guide: 1 set
Intake valve: 1 set,Exhaust valve: 1 set
Intake valve seat: 1 set,Exhaust valve seat: 1 set
Thrust washer: 1 set
*The cylinder liners in this kit are semi-finished.
They require additional machining.
4. Overhaul Rebuild Kit for Hino N04CT Engine
Application: Engine Hino N04CT
Content:
1 Set of Overhaul Gasket Kit,4 Cylinder Liners
4 Pistons STD,4 Piston Pins
8 Snap Rings,4 Rod Bushings
1 Set of piston rings,1 Set of Main Bearings
1 Set of Rod Bearings,1 Set of Thrust Bearings
4 Intake Valves,4 Exhaust Valves
8 Valve Guides,4 Intake Valves Seats
4 Exhaust Valves Seats
*The cylinder liners in this kit are semi-finished.
They require additional machining.
